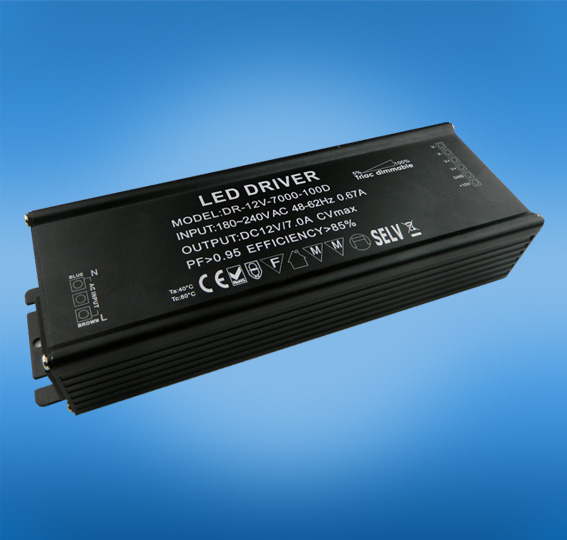

100W triac dimmable Led driver
100W triac dimmable Led driver
- Brand： ???HUEUC
- Model： ???DR-CC-100 DR-CV-100
Input voltage:110V/AC & 230V/AC
Output Constant current：1000MA&1200MA&2000MA (by customer's requirement)
Output Constant voltage：12V/24V/36V/48V
Output power：100W Working efficiency：85%
Constant current accuracy:5%
Power factor：>0.95
Dielectric strength：3750V
Constant current LED load：3W（20-33 pcs） / 1W（80-100 pcs）
Constant voltage LED load::12V/24V/36V/48V LED strip
12V/24V/36V/48V LED spot
Working temperature:-25℃~55℃
Size:210*68*38mm
Warranty:5 years
Our products have passed CE,ETL,TUV,3C and SAA certification.It can be applied to indoor and ourdoor lighting.
The range of triac dimming mode is from 5% to 100% without flashing.Constant current series can be used to driver Downlight,spotlight,panel light and etc.Constant voltage series can be used to driver light bar,spotlight MR16 and etc.
We also can adjust the output current and output voltage even non-dimming by your requirement.
